EBAA Mechanical Joint Restraints
MEGALUG – The Ultimate in Mechanical Joint Restraints
EBAA Iron, the leader in water and waste-water pipeline joint technologies, offers the MEGALUG Mehcanical Joint (MJ) Restraints for the following pipe materials:
Mechanical Joint Restraints
2000PV MEGALUG®
- MEGALUG® Mechanical Joint Restraint
- Available is sizes 3" to 36"
The Series 2000PV MEGALUG Mechanical Joint Restraint is the fastest and most economical method of restraining PVC pipe to mechanical joints. It can be used with C900, C905 or IPS OD PVC pipe.
For sizes 42 through 48 inch See Series 2200

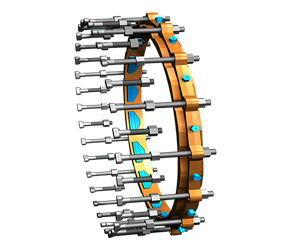

2200 MEGALUG®
- MEGALUG® Mechanical Joint Restraint
- Available is sizes 30" to 54"
The Series 2200 MEGALUG Mechanical Joint Restraint for use on Large Diameter (C905) AWWA PVC Pipe is a solid ring restraint for restraining PVC pipe to mechanical joint fittings and appurtenances.

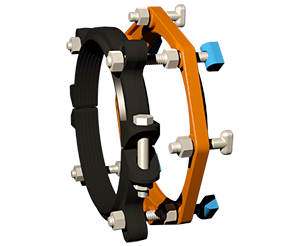

15MJG00TD Tru-Dual®
- Tru-Dual® Mechanical Joint Restraint
- Available is sizes 4" to 12"
The Series 15MJG00TD is a split, serrated restraint for Ductile Iron Pipe and AWWA C900 PVC pipe at Ductile Iron Mechanical Joint Fittings. It is composed of a split serrated restraint ring with heat treated Tru-Dual inserts and an MJ Follower Gland. The restraint is installed on the spigot end of the pipe and connects to the MJ Gland and fitting with an array of thrust bolts.

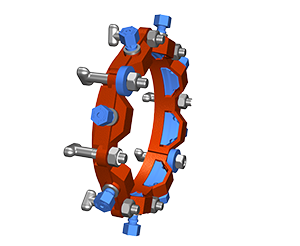

2000SV MEGALUG® Split Restraint
- MEGALUG® Mechanical Joint Restraint
- Available is sizes 4" to 12"
The Series 2000SV MEGALUG Split Restraint is designed for restraining existing mechanical joints on AWWA C900 PVC pipes. It's comprised of a split series 2000PV and clamping hardware.

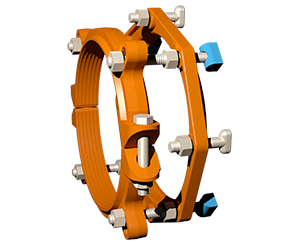

15MJG00 Split Serrated Restraint
- Restraint for AWWA C900 PVC with Mechanical Joint Follower Gland
- Available is sizes 4" to 12"
The Series 15MJG00 is designed for restraining Mechanical Joint Follower Glands on AWWA C900 PVC Pipe. The restraint is a split serrated ring with thrust rods that rod back to the included MJ Gland and fitting.

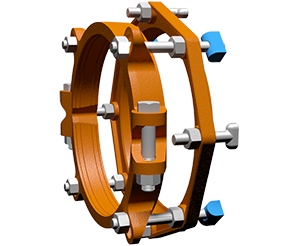

19MJG00 Split Serrated Restraint
- Restraint for AWWA C900 and C909 PVC with Mechanical Joint Follower Gland
- Available is sizes 4" to 12"
The Series 19MJG00 is designed for restraining Mechanical Joint Follower Glands on AWWA C900 and C909 PVC Pipe. The restraint is a split serrated ring with thrust rods that rod back to the fitting. The Restraint is rated for the full pressure of C900 or C909 PVC Pipe. Includes MJ Follower Gland.
65MJG00 Split Serrated Restraint
- Restraint for IPS (class) PVC with Mechanical Joint Follower Gland
- Available is sizes 4" to 12"
The Series 65MJG00 is designed for restraining Mechanical Joint Follower Glands on IPS (class) PVC Pipe. The restraint is a split serrated ring with thrust rods that rod back to the MJ Gland and the fitting.
