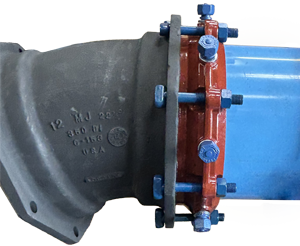

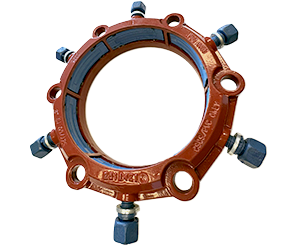

The Series 2300 Mechanical Joint Restraint is the fastest and most economical method of restraining C909 PVC pipe to mechanical joints. It can be used with C900 or IPS OD PVC pipe.
Available in sizes 6 inch through 12 inch.
The Series 19MJG00 is designed for restraining Mechanical Joint Follower Glands on AWWA C900 and C909 PVC Pipe. The restraint is a split serrated ring with thrust rods that rod back to the fitting. The Restraint is rated for the full pressure of C900 or C909 PVC Pipe. Includes MJ Follower Gland.
Available in sizes 4 inch through 12 inch.
The Series 1900 is designed for restraining push-on bell and spigot AWWA C909 PVC Pipe. The harness consists of two split serrated restraints one on the spigot end and another behind the bell harnessed together by an array of thrust rods. The Restraint harness is rated to the full pressure of the pipe.
Available in sizes 4 inch through 12 inch.
The Series 19PF00 is designed for restraining Ductile Iron Fittings with Restraining Ears on AWWA C909 PVC Pipe. The restraint is a split serrated ring with thrust rods that rod back to the fitting. The Restraint is rated to the full pressure of the pipe.
Available in sizes 4 inch through 12 inch.
The Series 2000PV MEGALUG Mechanical Joint Restraint is the fastest and most economical method of restraining 16in C909 PVC pipe to mechanical joints. It can be used with C900, C905 or IPS OD PVC pipe.
Available in size 16 inch C909 PVC Pipe
Available in 16 inch size.
The Series 2900 is a restraint harness utilizing two 2016PV restraint rings harnessed together by an array of thrust rods. The Harness is rated to the full pressure of the pipe.
Available in size 16 inch C909 PVC Pipe
Available in 16 inch size.
Our submittal packages will contain the product brochure, the sample specification document, and a CAD file for the product if there is one available.
