Series 1100SDB Split Mid Span Pipe Restraint on Ductile Iron Pipe
Series 1100SDB Split MEGALUG Mid Span Pipe Restraint

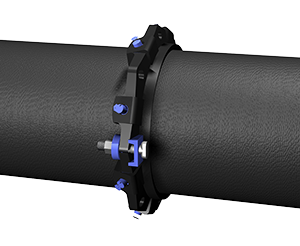

Installed View

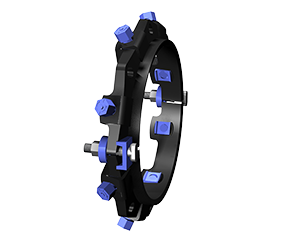

Product View

1100SDB MEGALUG® Mid Span Pipe Restraint

separator

Mid Span Pipe Restraint for Rodding to or as an Anchor Point encased in a Thrust Wall

The Series 1100SDB MEGALUG® restraint is for mid span restraint applications. It consists of a wedge action split restraint ring and can be installed mid span of the pipe independant of fittings.

Available in sizes 3 inch through 54 inch.

Our submittal packages will contain the product brochure, the sample specification document, and a CAD file for the product if there is one available.
