Series 2100 MEGAFLANGE Restrained Flange Adapter on PVC Pipe or Ductile Iron Pipe
Series 2100 MEGAFLANGE Restrained Flange Adapter

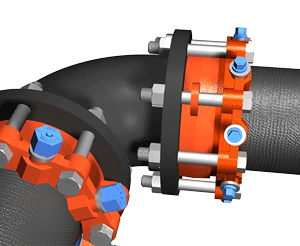

Installed View

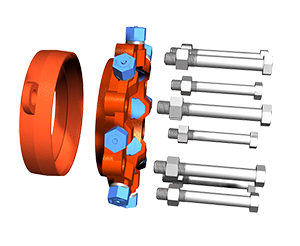

Product View

2100 MEGAFLANGE®

separator

Restrained Flange Adapter

The Series 2100 MEGAFLANGE Restrained Flange Adapter is a field-adaptable wedge style restrained flanging system. It has a restraint ring and a gasket ring to give the maximum amount of flexibility during and after installation. The MEGAFLANGE can be used on AWWA C900 and C905 PVC Pipe, IPS O.D. (Class) PVC Pipe, Ductile Iron Pipe, Steel Pipe, and HDPE Pipe.

Available in sizes 3 inch through 48 inch.

Our submittal packages will contain the product brochure, the sample specification document, and a CAD file for the product if there is one available.
