Push On Pipe Joints

blue angle

for IPS O.D. (Class) PVC Pipe

Series 6500 Bell Restraint Harness Restraining IPS O.D. (Class) PVC Pipe Bells
Series 6500 Bell Restraint Harness
Installed View

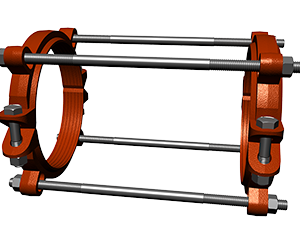

Product View

6500 Bell Restraint Harness

separator

Split Restraint Harness for IPS O.D. (Class) PVC Pipe

The Series 6500 Bell Restraint Harness is a split Serrated restraint harness for IPS O.D. (Class) PVC pipe bells. It's comprised of two split serrated rings and fastened together into a harness by an array of thrust rods.

Available in sizes 2 inch through 12 inch.

connections technical papers

blue angle
GI-01 Corrosion and Cathodic Protection in Underground Piping Systems Download
GI-02 Corrosion of Mechancial Joint Bolts Download
GI-03 Use of Coatings and Polyethylene for Corrosion Protection Download
GI-05 Product Testing and Hydrostatic Forces Download
GI-07 Product Traceability Download
GI-08 MEGA-BOND Restraint Coating System Download
PD-01 Connections Bulletin PD-01: Joint Restraint vs. Thrust Blocks Download
PD-02 Connections Bulletin PD-02: Restrained Pipeline Design and Horizontal Bends Download
PD-03 Connections Bulletin PD-03: Thrust Restraint Design of Vertical Offsets and Tees Download
PD-04 Thrust Restraint Design of Reducers, Dead Ends, and Valves Download
PD-05 Connections Bulletin PD-05: Bearing and Frictional Resistance: The Building Blocks of a Restrained System Download
PD-06 Connections Bulletin PD-06: Thrust Restraint Design Equations and Soil Parameters For Ductile Iron and PVC Pipe Download
List of All Connections Technical Papers All Papers

Push On Pipe Joints

blue angle

for IPS O.D. (Class) PVC Pipe

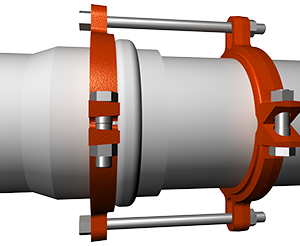

Series 7500 Restraint Harness restraining IPS O.D. (Class) PVC Pipe at a PVC Fitting
Series 7500 Restraint Harness restrains IPS O.D. (Class) PVC Pipe at PVC Fittings
Installed View

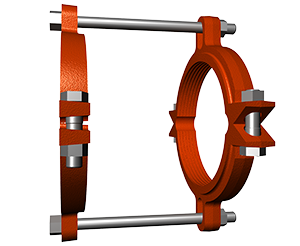

Product View

7500 IPS Fitting Restraint

separator

Split Restraint Harness for IPS O.D. (Class) PVC Pipe and Fittings

The Series 7500 Restraint Harness restrains IPS O.D. (Class) PVC Pipe at PVC Fittings. It's comprised of one split serrated restraint ring on the plain end or spigot end of pipe and a split non serrated bell ring that fits behind the gasket race of the fitting.

Available in sizes 2 inch through 8 inch.

Our submittal packages will contain the product brochure, the sample specification document, and a CAD file for the product if there is one available.
