Series 2500 Restraint Harness for PVC Fittings
Series 2500 Restraint Harness for PVC Fittings
Installed View

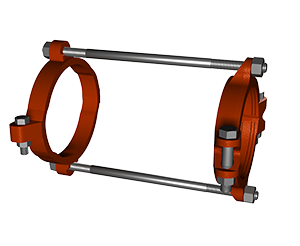

Product View

2600 Restraint Harness for PVC Fittings

separator

Restraint Harness for C900 or C909 PVC Pipe at PVC Fittings

The Series 2600 Restraint Harness for AWWA C907 PVC Fittings is quick and easy to install. The restraint for AWWA C900 or C909 PVC pipe sizes 4 inch through 12 inch has a split serrated restraint ring for the plain end or spigot end of pipe, and a split non-serrated bell ring that goes just behind the gasket race hump and is fastened into a harness by an array of thrust rods.

Available in sizes 4 inch through 12 inch.

Our submittal packages will contain the product brochure, the sample specification document, and a CAD file for the product if there is one available.
