Series 3800 MEGA-COUPLING coupling and restraining DIP and PVC Pipes
Series 3800 MEGA-COUPLING Restrained Coupling

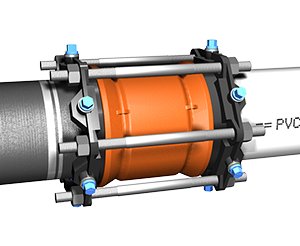

Installed View

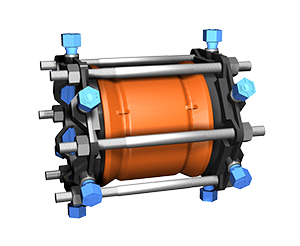

Product View

3800 MEGA-COUPLING®

separator

Coupling for Restraining Plain Ends of Pipe

The Series 3800 MEGA-COUPLING is a restrained coupling for similar and dissimilar pipe materials. Nominal Pipe Sizes 4 inch through 12 can be used on: Ductile Iron Pipe (DIP), C900 PVC Pipe, ASTM 2241 PVC (IPS), Carbon Steel Pipe, HDPE Pipe, or a combination thereof. Sizes 14 inch through 36 inch can be used on Ductile Iron Pipe (DIP), C905 PVC Pipe or both and 54 inch can be used on DIP.

Available in sizes 4 inch through 54 inch.

Our submittal packages will contain the product brochure, the sample specification document, and a CAD file for the product if there is one available.
