Restrained Couplings

blue angle
Series 1100CH MEGALUG Coupling Harness restraining an un-restrained couplding
Series 1100CH Split MEGALUG Coupling Harness
Installed View

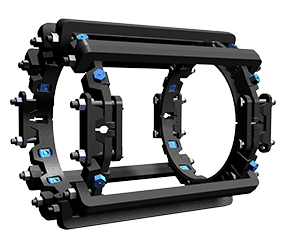

Product View

1100CH Split Restraint Harness for Couplings

separator

Restraint Harness for Unrestrained Couplings

The Series 1100CH restrains existing or new couplings on Ductile Iron Pipe (over-sized restraints available for Pit Cast Iron Pipe). The split MEAGALUG restraints and 'offset' tie bars are made of ductile iron conforming to ASTM A536.

Available in sizes 14 inch through 36 inch.

Our submittal packages will contain the product brochure, the sample specification document, and a CAD file for the product if there is one available.
