Gasket

blue angle
EBAA-Seal Improved Mechanical Joint Gasket on either Ductile Iron Pipe or AWWA C900 PVC Pipe
EBAA-Seal Improved Mechanical Joint Gasket

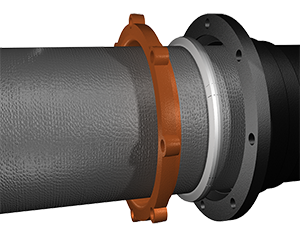

Installed View

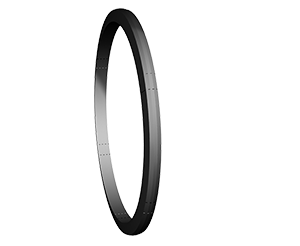

Product View

EBAA-Seal® Mechanical Joint Gasket

separator

Improved Mechanical Joint Gasket

The EBAA-Seal Improved Mechanical Joint Gasket creates a superior seal while using the minimum torque values associated with the mechanical joints. This is achievable by the gasket's shape and the gasket material quality.

Available in sizes 4 inch through 54 inch.

connections technical papers

blue angle
GI-01 Corrosion and Cathodic Protection in Underground Piping Systems Download
GI-02 Corrosion of Mechancial Joint Bolts Download
GI-03 Use of Coatings and Polyethylene for Corrosion Protection Download
GI-05 Product Testing and Hydrostatic Forces Download
GI-07 Product Traceability Download
List of All Connections Technical Papers All Papers

Gasket

blue angle
EBAA-Wedge
EBAA-Wedge

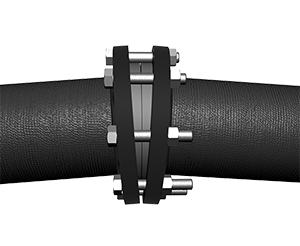

Installed View
Product View

EBAA-Wedge™ Adjustable Flange Gasket

separator

Adjustable Flange Deflection Filler Gasket

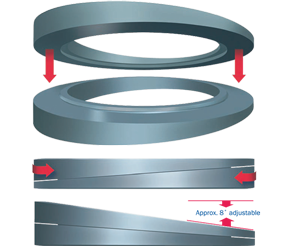

The adjustable EBAA-Wedge consists of two half gaskets with a 4° integrally molded sealing face that are connected to one another by an internal groove. Due to the meshed grooved ring connection the EBAA-Wedge can be easily turned toward one another for a maximum deflection of 8°.

Available in sizes 3 inch through 16 inch.

Our submittal packages will contain the product brochure, the sample specification document, and a CAD file for the product if there is one available.
