Mechanical Joint Restraint

blue angle
Series 15MJ00TD Tru-Dual Mechanical Joint Restraint at a Ductile Iron Fitting
Series 15MJ00TD Tru-Dual Mechanical Joint Restraint
Installed View
Product View

15MJ00TD Tru-Dual®

separator

Tru-Dual® Mechanical Joint Restraint

The Series 15MJ00TD is a split, serrated restraint for Ductile Iron Pipe and AWWA C900 PVC pipe at Ductile Iron Mechanical Joint Fittings. It is composed of a split serrated restraint ring with heat treated Tru-Dual inserts. The restraint is installed on the spigot end of the pipe and connects to the fitting with an array of thrust bolts(requires use of Mechanical Joint Gland, not included).

Available in sizes 4 inch through 12 inch.

connections technical papers

blue angle
GI-01 Corrosion and Cathodic Protection in Underground Piping Systems Download
GI-02 Corrosion of Mechancial Joint Bolts Download
GI-03 Use of Coatings and Polyethylene for Corrosion Protection Download
GI-05 Product Testing and Hydrostatic Forces Download
GI-07 Product Traceability Download
GI-08 MEGA-BOND Restraint Coating System Download
PD-01 Connections Bulletin PD-01: Joint Restraint vs. Thrust Blocks Download
PD-02 Connections Bulletin PD-02: Restrained Pipeline Design and Horizontal Bends Download
PD-03 Connections Bulletin PD-03: Thrust Restraint Design of Vertical Offsets and Tees Download
PD-04 Thrust Restraint Design of Reducers, Dead Ends, and Valves Download
PD-05 Connections Bulletin PD-05: Bearing and Frictional Resistance: The Building Blocks of a Restrained System Download
PD-06 Connections Bulletin PD-06: Thrust Restraint Design Equations and Soil Parameters For Ductile Iron and PVC Pipe Download
List of All Connections Technical Papers All Papers

Push On Pipe Joints

blue angle

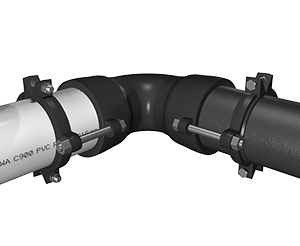

Series 15PF00TD Tru-Dual Restraining Ductile Iron Pipe at a Push On Joint Fitting
Series 15PF00TD Tru-Dual Push On Pipe Joint Restraint
Installed View

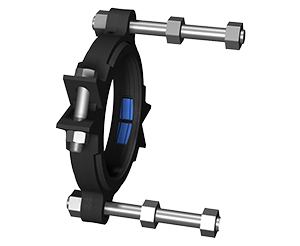

Product View

15PF00TD Tru-Dual®

separator

Tru-Dual® Push On Pipe Joint Restraint

The Series 15PF00TD is a split, serrated restraint for Ductile Iron Pipe and AWWA C900 PVC pipe at Ductile Iron Fittings. It is composed of a split serrated restraint ring with heat treated Tru-Dual inserts. The restraint is installed on the spigot end of the pipe and connects to the fitting with an array of thrust bolts.

Available in sizes 4 inch through 12 inch.

Our submittal packages will contain the product brochure, the sample specification document, and a CAD file for the product if there is one available.
